Pulleys are precision-made on CNC machines as per IS 3142Description
Introduction
Power transmission components are integral to industrial machinery operating smoothly. The taper lock pulley is among the most effective and versatile pulleys for power transmission between shafts and belts.
In this page, we explore the basics of taper lock pulleys for industrial machines, how they function, their characteristics, benefits, and uses across various industries.

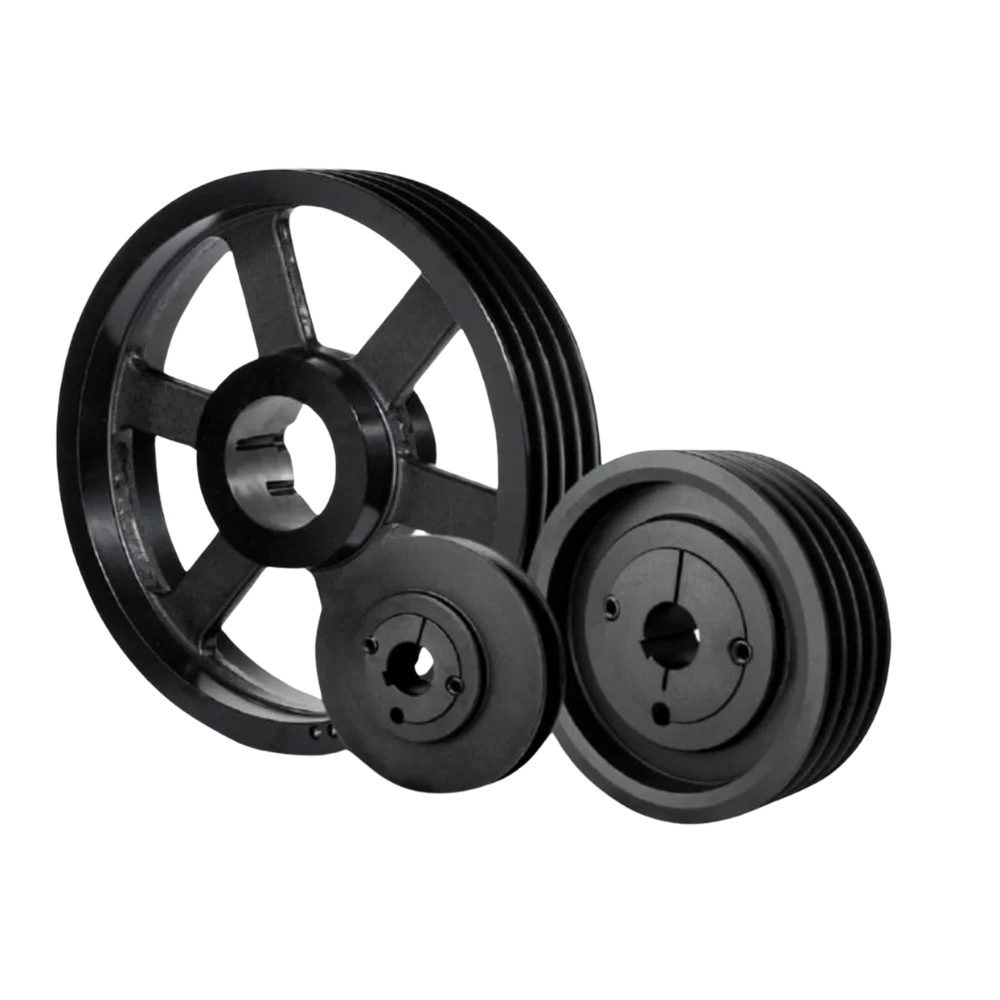

What Is a Taper Lock Pulley?
A taper lock pulley is a type of power transmission pulley installed on a shaft using a tapered-bushing system. The design of the taper lock mechanism provides a tighter, concentric fit between the bushing and the shaft compared to conventional pulleys, which rely only on keyways or set screws.
The taper lock is the mechanism that helps hold the pulley firmly on the shaft at any angle, making it easier to achieve accurate alignment. Its unique design makes it easy to install and remove without complex tools or machinery.
Key Features of Taper Lock Pulleys
| Feature | Benefit |
|---|---|
| Precision Manufacturing | Ensures smooth and vibration-free operation |
| Flexible Bushing System | Compatible with various shaft sizes and pulley bores |
| Accurate Shaft Alignment | Reduces wear and increases service life |
| Easy Installation & Removal | Minimizes machine downtime during maintenance |
| Durable Surface Finish | Suitable for harsh industrial environments |
Benefits of Taper Lock Pulleys
| Benefit | Advantage |
|---|---|
| Quick Installation & Removal | Reduces maintenance time and downtime |
| Secure Shaft Grip | Minimizes pulley slippage under load |
| Reduced Vibration & Wear | Improves bearing, belt, and shaft life |
| Wide Industrial Compatibility | Suitable for light and heavy-duty applications |
| Lower Operating Costs | Reduces maintenance and replacement expenses |
Applications of Taper Lock Pulleys
| Industry | Application |
|---|---|
| Manufacturing | Conveyor systems, assembly lines, and packaging equipment |
| Agriculture | Harvesters, threshers, and irrigation pumps |
| Mining & Quarrying | Crushers, screeners, and conveyor drives |
| Food Processing | Mixers, conveyors, and packaging machinery |
| HVAC Systems | Fans, blowers, and air-handling units |
The taper lock V pulley is especially useful in V-belt drives, where effective power transmission and slip prevention are crucial.
Related Resources
Looking to improve the performance and lifespan of your pulley systems? Explore our expert guides on pulley installation, maintenance, and selection.
- Taper Lock Pulley Installation Tips for Maximum Efficiency
- Tips for Choosing the Right Taper Lock Bushes for Your Machinery
- Motor Pulley in India | How Are Pulleys Manufactured in India?
- V Pulley Applications and Selection Guide
FAQs
What is a taper lock pulley used for?
A taper lock bushing securely and concentrically locks the pulley onto the shaft, making a taper lock pulley an excellent choice for applications where precision, reliability and ease of maintenance are vital. It is commonly used in various industrial machines, such as conveyor systems, pumps, compressors, etc.
How to select the right pulley size?
The pulley size is determined by several variables, including the speed ratio of the driven to the driver shaft, the type of belt (V-belt, flat belt, etc.), the power the belt can handle, and the distance between the centres of the shafts. Refer to the DEAE specifications to properly match the pulley size to your machine before you buy a taper-lock pulley in India.
What industries use taper lock pulleys?
Taper lock pulleys find applications in various sectors such as manufacturing, agriculture, mining, textiles, food processing, HVAC, water treatment, and many others.
What are the main advantages of a taper lock pulley?
Easy assembly, better mechanical grip, and zero slippage are the major advantages of a taper lock pulley.
