Introduction

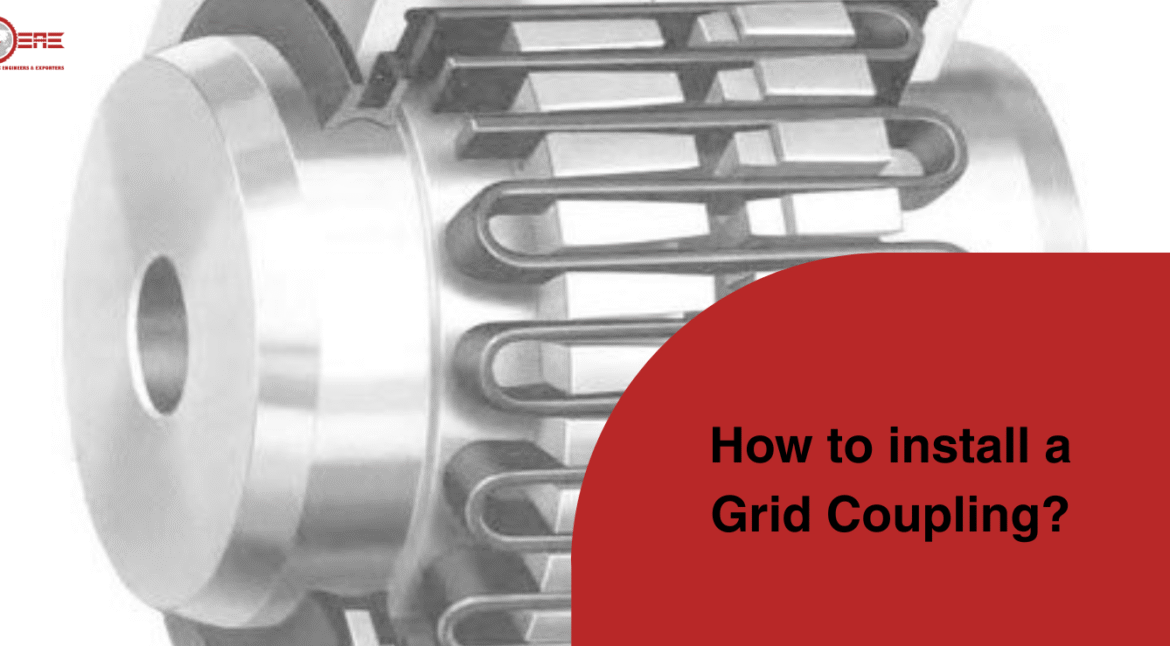

To install a grid coupling, follow these general steps based on standard procedures from multiple sources, including manufacturer instructions:
Preparation and Safety:
- Ensure power sources are locked out and tagged for safety.
- Wear safety glasses and appropriate protective equipment.
- Clean and deburr shaft ends and coupling parts as needed.
- Inspect shafts and hub bores for dirt and burrs.
Install Hubs on Shafts:
- Mount the hubs on the respective shafts, ensuring the hub faces are flush with the shaft ends.
- If using keyed shafts, ensure keys fit properly.
- Tighten set screws to the specified torque using a calibrated torque wrench to avoid damage or loosening.
Set the Coupling Gap:
- Move equipment to position the hubs to match the required gap distance, usually specified in the installation guide, with a tolerance of about ±10%.
- You can use spacer bars of the specified thickness or measure with calipers.
Align the Shafts:
- Check angular and parallel alignment carefully, as excessive misalignment reduces coupling and equipment life.
- Maximum angular misalignment is often limited to about 0.25 degrees.
- Use straight edges and feeler gauges or dial indicators to ensure alignment within tolerances. Adjust shims as necessary.
Lubricate and Install the Grid:
- Pack the coupling’s grid notch and openings thoroughly with the recommended grease or lubricant.
- Spread the grid element slightly to fit over the coupling teeth and seat it fully in the openings.
- Wipe off excess grease flush with the top of the grid.
Install Seals and Covers:
- Lightly grease seals and position them on hubs matching grooves.
- Position gaskets on cover halves and install covers, ensuring match marks line up correctly.
- Tighten cover fasteners to the torque specifications in the installation guidelines.
Final Checks and Maintenance:
- Insert and secure all plugs in the covers before operation.
- Ensure coupling guards comply with safety regulations (OSHA/ASME).
- A lubrication schedule should be maintained to prolong coupling life.
These steps can vary slightly depending on the grid coupling brand and model you are installing, so always refer to the manufacturer’s installation manual for precise torque values, alignment tolerances, and lubrication types.
